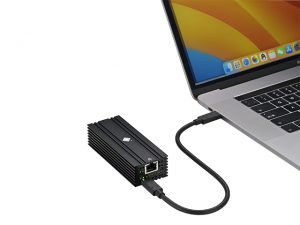

Features a Thunderbolt interface with a reversible USB-C connector and an Ethernet port that supports auto-negotiation for 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s, and 100Mb/s Base-T. This bus-powered adapter delivers high-speed 10GbE network connectivity.

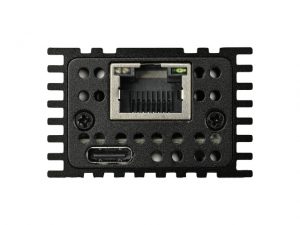

  • Thunderbolt Interface with reversible USB-C connector
  • Multi-Speed Ethernet Port with auto-negotiation for 10Gb/s, 5Gb/s, 2.5Gb/s, 1Gb/s, and 100Mb/s Base-T
  • Bus-Powered Design for convenient 10GbE connectivity
  • Jumbo Frame Support up to 16 KB
  • Typical Power Consumption per Port:
    • 2.5 W for 10GBASE-T over 100 m Cat 6A
    • 1.5 W for 5GBASE-T
    • 1 W for 1GBASE-T
  • Advanced Networking Support: Audio Video Bridging (AVB), PTP/1588v2, and Synchronous Ethernet (Sync-E, ITU-T compliant with IEEE standards)
  • Interrupt Support: MSI, MSI-X, and legacy INTx PCIe interrupts
  • Management Features: Network Controller Sideband Interface (NC-SI) and Management Component Transport Protocol (MCTP)
  • Standards Compliance:
    • IEEE 802.3an — 10 GbE over unshielded twisted pair
    • IEEE 802.3bz — 2.5/5GBASE-T
    • IEEE 802.3ab — 1000BASE-T Gigabit Ethernet
    • IEEE 802.3u — 100BASE-TX Fast Ethernet
    • IEEE 802.1Q — VLAN tagging
    • IEEE 802.3x — Full Duplex & flow control
    • IEEE 802.3az — Energy Efficient Ethernet (EEE)
  • PXE Boot Support
  • FCoE: Not supported
  • Operating Temperature: 0 °C to 85 °C
  • Storage Temperature: −40 °C to 105 °C

Model: KRYM-HTB1131-GLAN​
Input Interface: USB4
Output Interface: RJ45 Ethernet
Transmission Rate: 10 Gbps
Auxiliary Accessories: USB4 Cable included
Product Dimensions: 102.7 × 40.4 × 25.6 mm

System Requirements

  • Microsoft® Windows® 10 or 11
  • Linux Kernel 3.10 or later
  • macOS

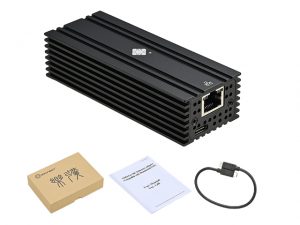

Package Contents

  • 1 × Thunderbolt 10G Ethernet Adapter
  • 1 × USB4 Cable
  • 1 × User Manual
