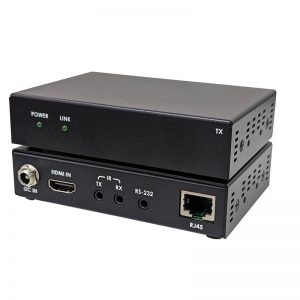

4K HDMI Extender 100M

Experience crystal-clear 4K video over long distances with the 4K HDMI Extender 100 m. Designed for professional AV and digital signage applications, it delivers stable, high-quality signal transmission over a single Cat6 cable, simplifying installation while ensuring exceptional performance.

Key Features:

• Delivers stunning 4K60Hz 4:4:4 resolution for sharp, vibrant visuals
• Extends 4K60Hz HDMI® signals up to 100 m over a single Cat6 cable
• Extends 1080P HDMI® signals up to 120 m over a single Cat6 cable
• Supports 3D video playback and all HDMI® audio formats, including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, and DTS-HD Master Audio
• Enables CEC (Consumer Electronics Control) pass-through
• Supports Deep Color up to 8-bit for vivid, lifelike images
• Bidirectional IR pass-through for convenient source device control
• RS-232 pass-through for seamless integration with control systems
• HDMI 1.4 compliant and HDCP 1.4/2.2 compatible

Product Advantages:

• Exceptional Stability: Engineered for 24/7 operation, maintaining uninterrupted video signals for large retail or commercial installations
• Unmatched Image Quality: Guarantees crystal-clear 4K content with rich colors and sharp details
• Ultra-Long Distance Transmission: Supports reliable video transmission up to 100 m for 4K and 120 m for 1080P over Cat6 cabling
• Comprehensive Control & Integration: Easily manage source devices via IR and RS-232 pass-through
• Broad Compatibility: Works seamlessly with modern HDMI devices and displays

Whether for digital signage, conference rooms, or professional AV setups, the 4K HDMI Extender ensures flawless video quality and reliable long-distance performance without the complexity and cost of traditional HDMI cabling.

Transmitter / Receiver

• HDMI Compliance: HDMI 1.4
• HDCP Compliance: Compatible with HDCP 2.2 and HDCP 1.4

Performance

• HDMI Bandwidth: 600 MHz / 18 Gbps
• Video Resolutions: 480p, 720p, 1080p @ 24/30/50/60 Hz, 4K × 2K @ 24/30/60 Hz
• HDMI Audio Formats:
  • 2-channel 16/20/24-bit PCM at 32/44.1/48 kHz
  • Up to 8 channels at 44.1/48 kHz
• Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
• Extends 4K60Hz HDMI® signals up to 100 m over a single CAT6 cable

• Extends 1080p HDMI® signals up to 120 m over a single CAT6 cable

Interfaces

• Output Port: RJ45 × 1 (Cat.6/6e/7)
• Input Ports: HDMI × 1, RJ45 × 1 (HDMI)
• Control Ports:
  • IR Blaster × 1 (3.5 mm)
  • IR Receiver × 1 (3.5 mm)
  • RS-232 × 1 (3.5 mm)

Control Specifications

• IR Frequency: 20–60 kHz
• Baud Rate: Up to 115,200 bps

Power

• Power Supply: 5 V DC / 3.0 A (AU plug)
• Power Consumption: Max. 10 W

Physical

• Chassis Material: Metal
• Chassis Color: Black
• Dimensions: 110 mm × 75 mm × 25 mm (4.33 in × 2.95 in × 0.98 in)
• Weight: 270 g

Package Contents

• HDMI Extender (TX Unit)
• HDMI Extender (RX Unit)
• 2 x 5V/3A DC power adapter
• IR cable
• RS232 cable
• User Manual
