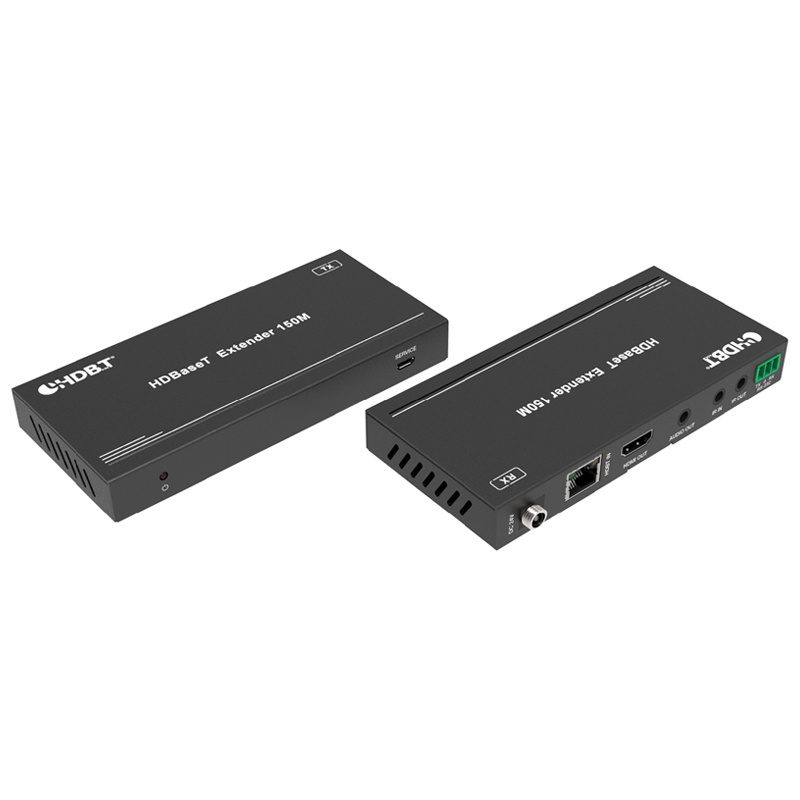

HDBaseT 3.0 4K HDMI Extender with Bi-directional IR & PoC – 4K up to 120 m / 1080p up to 150 m

• Long-Distance Transmission: Supports up to 150 m at 1080p or 120 m at 4K2K@60Hz 4:4:4 resolution over a single Cat5e/6 cable.
• High-Performance Video: Delivers 18 Gbps bandwidth, supporting resolutions up to 4K2K@60Hz 4:4:4, 4K2K@60Hz 4:2:2, 4K2K@60Hz 4:2:0, and 1080p.
• HDCP Compliance: Compatible with HDCP 2.2 / HDCP 1.4 and DVI 1.0 standards.
• Audio De-embedding: Provides analog stereo (L/R) audio output on the receiver.
• IR Control: Features bi-directional IR pass-through (38 kHz to 56 kHz) for remote control of source and display devices.
• RS-232 Support: Includes Phoenix RS-232 ports for firmware updates or serial control signal transmission.
• CEC Pass-through: Supports Consumer Electronics Control (CEC) for simplified device communication.
• HDR Support: Compatible with HDR, HDR10+, Dolby Vision, and HLG for enhanced picture quality.
• Power over Cable (PoC): Enables the transmitter or receiver to be powered by the other device, eliminating the need for a separate power supply.
• Compact Design: Slim metal enclosures for easy and flexible installation.

• HDCP Compliance: HDCP 2.2 / HDCP 1.4
• Video Bandwidth: 18 Gbps

• Video Resolution:
  • 4K2K 50/60Hz 4:4:4
  • 4K2K 50/60Hz 4:2:2
  • 4K2K 50/60Hz 4:2:0
  • 4K2K 30Hz 4:4:4
  • 1080p, 1080i, 720p, 720i, 480p, 480i
  • All HDMI 3D TV formats
  • All PC resolutions including 1920 × 1200
• Color Space: RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
• Color Depth:
  • 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0)
  • 8-bit (4K60Hz 4:4:4)
• HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
• L/R Audio Formats: PCM 2.0

• ESD Protection: ±8kV (Air-gap discharge) & ESD Protection ±4kV (Contact discharge)

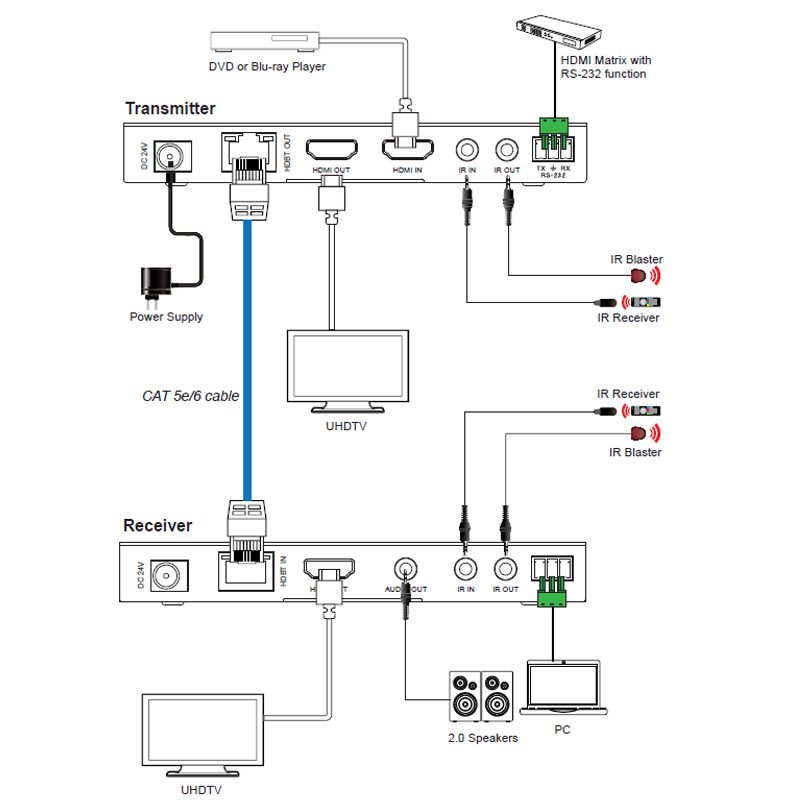

Connections

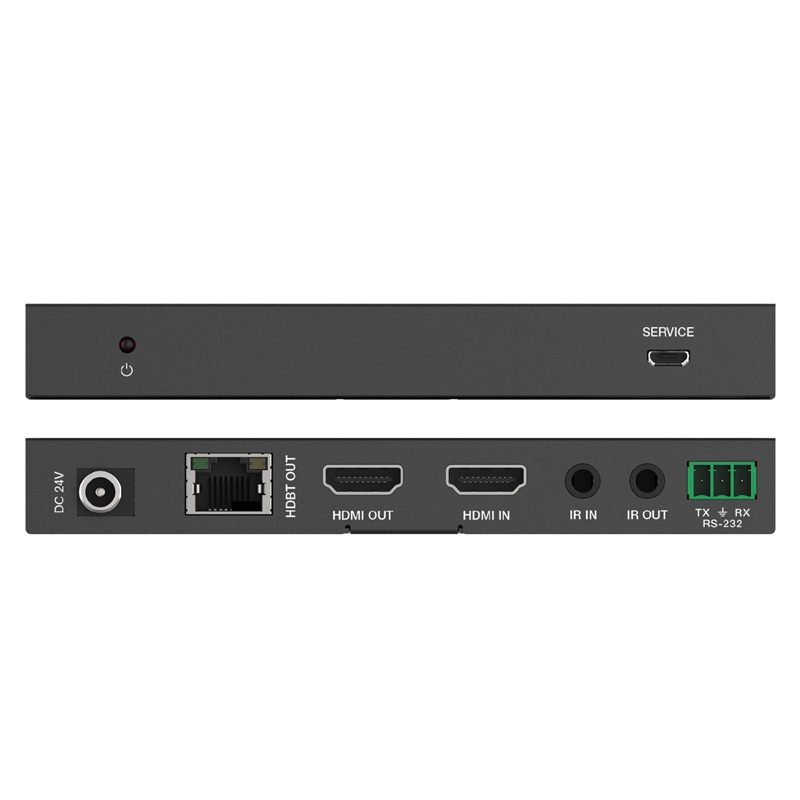

• Transmitter:
  • Input: 1x HDMI Type A [19-pin female]
  • Output:
    • 1x HDMI Type A [19-pin female]
    • 1x HDBT OUT [RJ45, 8-pin female]
  • Control:
    • 1x IR IN [3.5mm Stereo Mini-jack]
    • 1x IR OUT [3.5mm Stereo Mini-jack]
    • 1x RS-232 [Phoenix jack]
    • 1x SERVICE [Mini-USB, Update port]

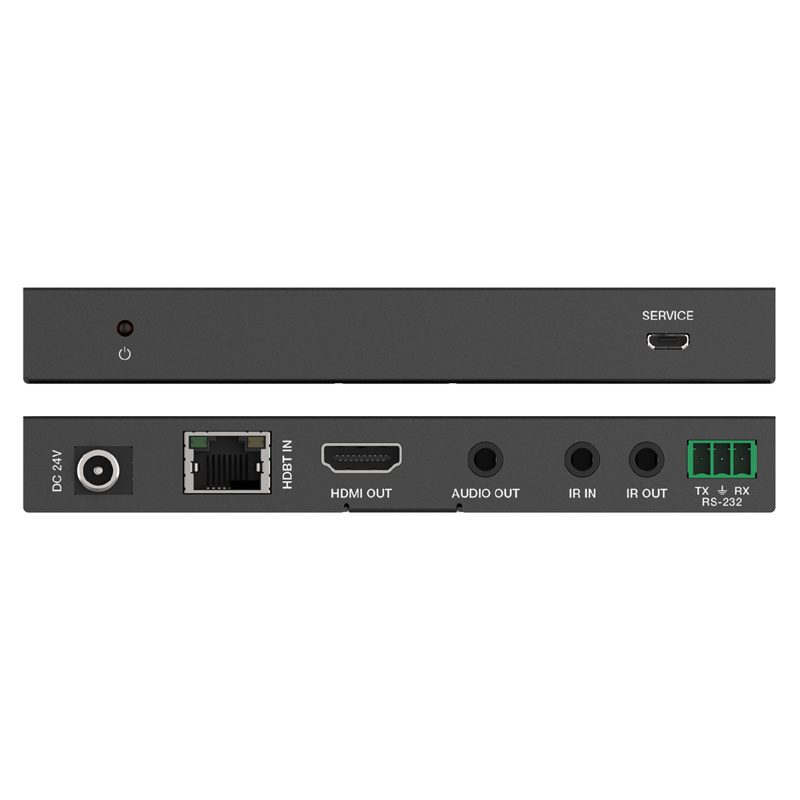

• Receiver:
  • Input: 1x HDBT IN [RJ45, 8-pin female]
  • Output:
    • 1x HDMI Type A [19-pin female]
    • 1x AUDIO OUT [3.5mm Stereo Mini-jack]
  • Control:
    • 1x IR IN [3.5mm Stereo Mini-jack]
    • 1x IR OUT [3.5mm Stereo Mini-jack]
    • 1x RS-232 [Phoenix jack]
    • 1x SERVICE [Mini-USB, Update port]

Mechanical

• Housing: Metal Enclosure

• Colour: Black

• Dimensions (Tx / Rx): 140 mm × 65 mm × 18 mm

• Weight: Transmitter: 160 g, Receiver: 155 g

Power

• Input: AC 100–240 V 50/60 Hz

• Output: DC 24 V / 1 A (Locking connector)

• Power Consumption (Max): 9.36 W


  Note: The extender supports PoC (Power over Cable). This means that if either the transmitter or receiver is powered with a 24V/1A adapter, the other unit does not require a separate power supply.

Environmental

• Operating Temperature: 0 °C – 40 °C (32 °F – 104 °F)

• Storage Temperature: -20 °C – 60 °C (-4 °F – 140 °F)
• Relative Humidity: 20–90% RH (non-condensing)

• User Manual
